Click to Zoom
Size Options & Purchase
*In Store - Not all In Stock bikes are on display. If you would like to collect or view a bike in store, please use our Click & Collect payment method or call 0118 9821021 to reserve and ensure your bike is ready for your visit.
ETAs are based on manufacturer's latest data.
Please note that we are unable to ship this Trek Rail+ 9.9 X0 AXS T-Type Gen 5 Deep Smoke outside of the UK.
Important lead time information
Where delivery times are stated as an ETA month this is based on the latest information from the manufacturer. These dates should be treated as a guide and may be subject to change. Due to an increased strain in global supply chains, factory and shipping schedules can be easily disrupted.
Should you place a future order with us we will monitor the bike’s ETA and keep you informed of any changes.
For more detailed information please read here.
Description

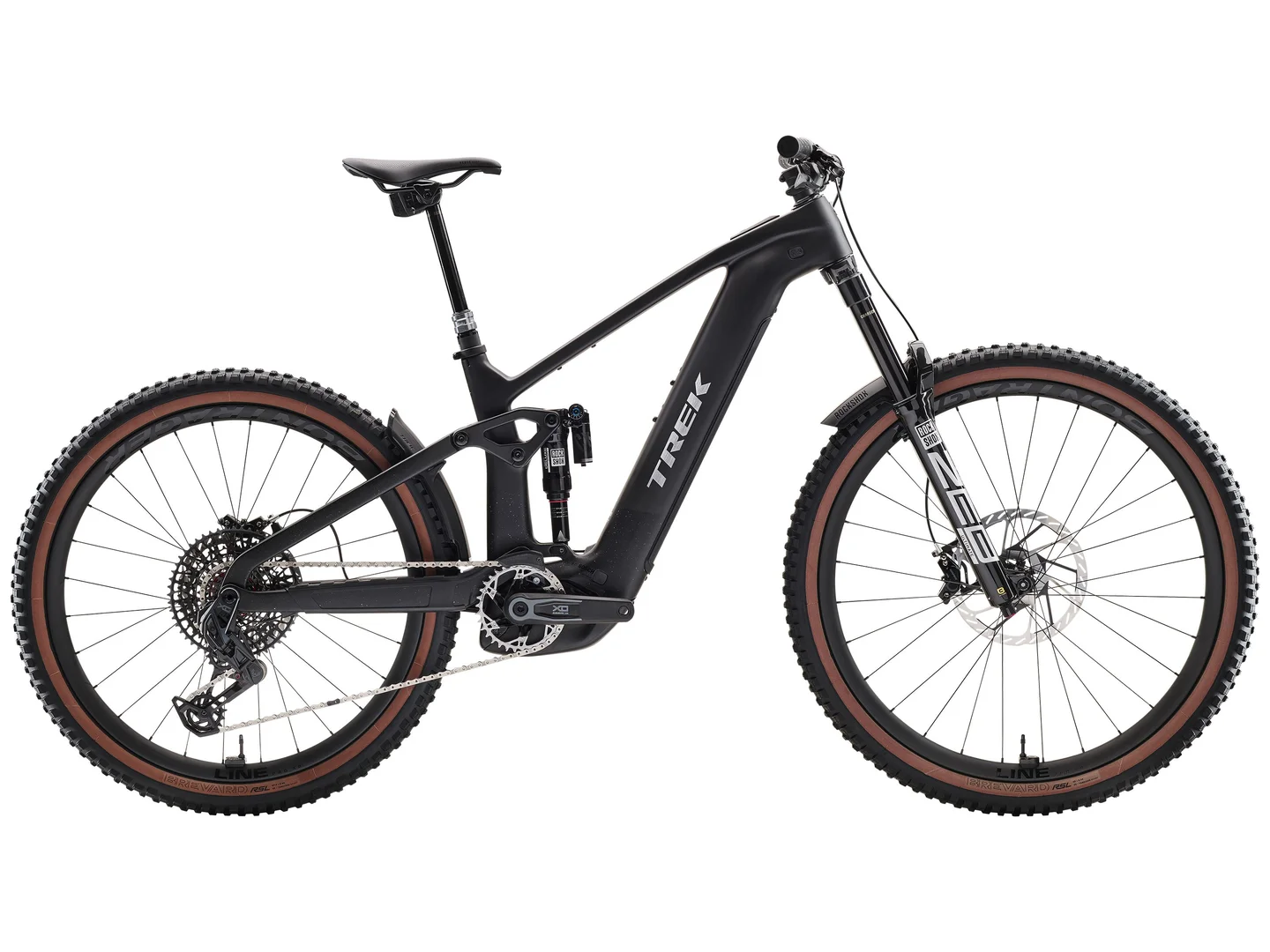

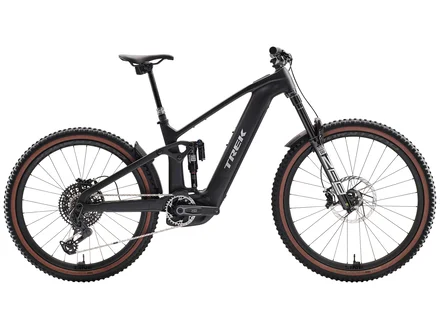

This Trek Rail+ 9.9 X0 AXS T-Type Gen 5 Deep Smoke is available with our legendary Podium Point free accessory scheme.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
Generation 5
Frame
OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel
Fork
Rockshox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
Rear Shock
RockShox Super Deluxe Ultimate RC2T, 205x65 mm
Motor
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Control System
Bosch System Controller BRC3100, smart system
Battery
Bosch PowerTube 800 Wh, smart system
Display
Shifters
SRAM AXS Pod
Rear Mech
SRAM X0 Eagle AXS, T-Type
Front Mech
Bottom Bracket
Chainset
SRAM X0 Eagle, 160 mm length
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
Chain
SRAM X0 Eagle, T-Type, 12-speed
Brakes
SRAM Code Silver 4-piston hydraulic disc
Pedals
VP-536 nylon platform
Wheelset
F: Size: S - Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 27.5"
Size: M, L, XL - Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
R: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Tyres
Size: S, M, L, XL - Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50"
Size: M, L, XL - Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"
Handlebar
Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Stem
Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
Grips
Bontrager XR Trail Elite, nylon lock-on
Seatpost
Size: S - RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
Size: M, L, XL - RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
Saddle
Verse Short Comp, steel rails, 145 mm width
Headset
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Extras
Charger - Bosch standard 4A, 230V, smart system
Warranty
We are an authorised Trek dealer and supply this Trek Rail+ 9.9 X0 AXS T-Type Gen 5 Deep Smoke with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
S
5'1"-5'5"
1.55-1.65
0.74-0.78
M
5'5"-5'9"
1.65-1.76
0.79-0.83
L
5'10"-6'2"
1.77-1.88
0.84-0.89
XL
6'2"-6'5"
1.88-1.95
0.89-0.91
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
Geometry
