Description

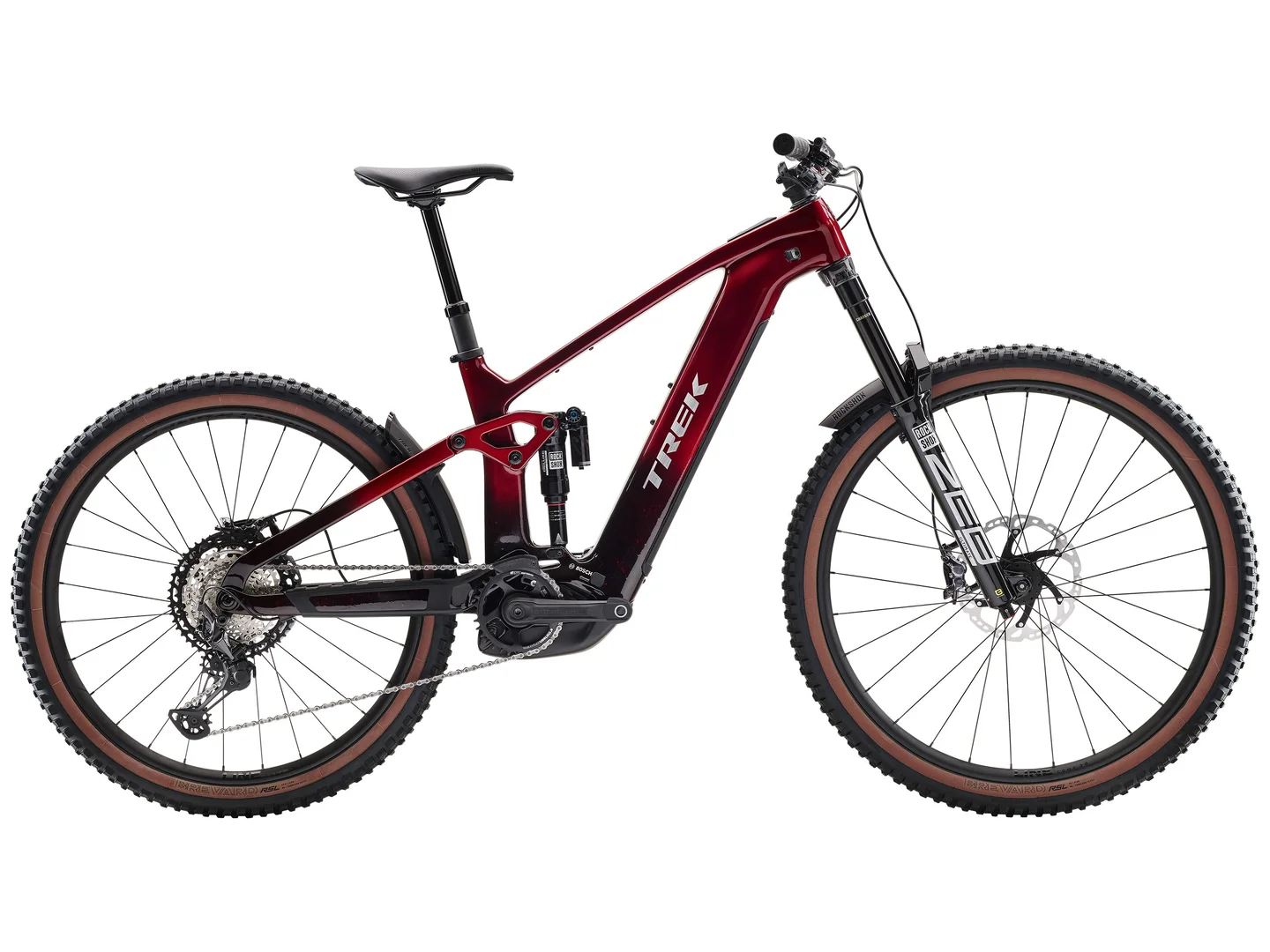

This Trek Rail+ 9.8 XT Gen 5 Red Smoke is available with our legendary Podium Point free accessory scheme.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
Generation 5
Frame
OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel
Fork
Rockshox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
Rear Shock
RockShox Super Deluxe Ultimate RC2T, 205x65 mm
Motor
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Control System
Bosch System Controller BRC3100, smart system
Battery
Bosch PowerTube 800 Wh, smart system
Display
Shifters
Shimano XT M8100, 12-speed
Rear Mech
Shimano XT M8100, long cage
Front Mech
Bottom Bracket
Chainset
E*thirteen E*spec Plus, 160 mm length
Cassette
Shimano XT M8100, 10-51, 12-speed
Chain
Shimano XT M8100, 12-speed
Brakes
Shimano XT M8120 4-piston hydraulic disc
Pedals
VP-536 nylon platform
Wheelset
F: Size: S - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
Size: M, L, XL - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
R: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Tyres
Size: S, M, L, XL - Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50"
Size: M, L, XL - Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50"
Handlebar
Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Stem
Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
Grips
Bontrager XR Trail Elite, nylon lock-on
Seatpost
Size: S - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length
Size: M, L, XL - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
Saddle
Verse Short Comp, steel rails, 145 mm width
Headset
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Extras
Charger - Bosch standard 4A, 230V, smart system
Warranty
We are an authorised Trek dealer and supply this Trek Rail+ 9.8 XT Gen 5 Red Smoke with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
S
5'1"-5'5"
1.55-1.65
0.74-0.78
M
5'5"-5'9"
1.65-1.76
0.79-0.83
L
5'10"-6'2"
1.77-1.88
0.84-0.89
XL
6'2"-6'5"
1.88-1.95
0.89-0.91
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
Geometry
