Description

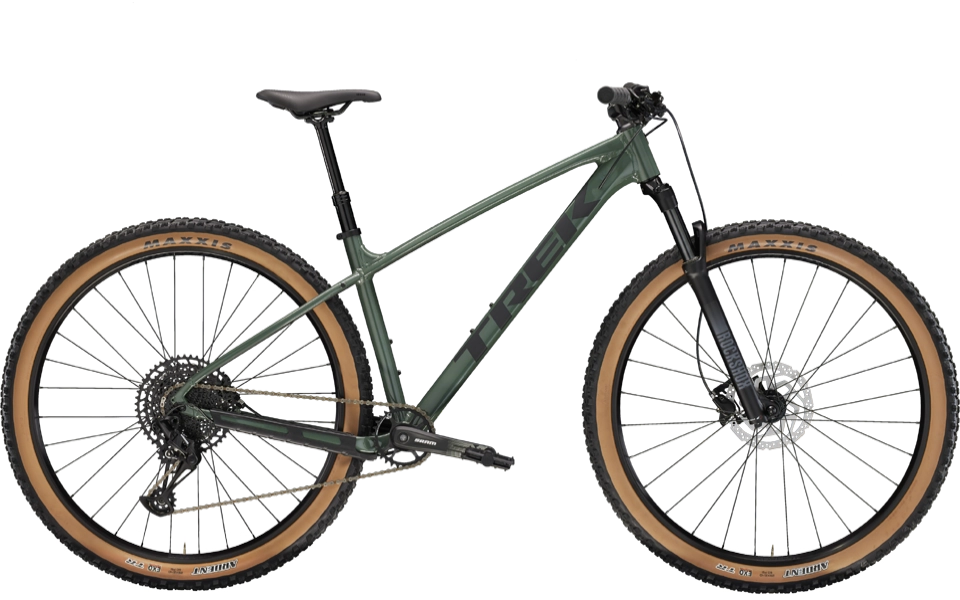

This Trek Marlin 7 Keswick is available with our legendary Podium Point free accessory scheme.
The Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It finds the perfect balance between price and performance with an upgraded RockShox suspension fork that makes quick work of rocks and bumps in your path and the huge gearing range of a SRAM 12-speed SX Eagle drivetrain.
Marin 7 features a lightweight aluminium frame with modern trail riding geometry and internal routing that keeps cables protected and the bike looking sleek. An upgraded RockShox suspension fork smooths out rowdy trails, 12-speed SRAM SX Eagle shifting and the serious stopping power of hydraulic disc brakes.
The Marlin 7 is the go-to trail bike for those wanting to build skills on the singletrack and get the right bang for their buck with upgraded suspension and confidence-inspiring geometry.
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
Generation 3
Frame
Size: XXS , XS - Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Size: S , M , ML , L , XL , XXL - Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
Fork
Size: XXS - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: XS , S - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL - RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Rear Shock
Shifters
SRAM SX Eagle, 12-speed
Rear Mech
SRAM SX Eagle
Front Mech
Bottom Bracket
Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Chainset
SRAM SX Eagle, 30T steel ring, 49 mm chainline
Cassette
SRAM PG-1210 Eagle, 11-50, 12-speed
Chain
SRAM SX Eagle, 12-speed
Brakes
Shimano MT200 hydraulic disc
Pedals
VP-536 nylon platform
Wheelset
Rim: Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve. Hub F: Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR. Hub R: Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Tyres
Size: XXS - Bontrager XT3 Elite, Tubeless Ready, Inner Strength casing, wire bead, 60 tpi, 26x2.35"
Size: XS, S - Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35"
Size: M,ML,L,XL,XXL - Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35"
Handlebar
Bontrager alloy, 31.8 mm, riser
Stem
Bontrager Comp, 31.8 mm, 7-degree. XXS,XS, S - 35mm. M, ML, L - 50mm. XL - 60mm. XXL - 70mm.
Grips
Bontrager XR Trail Comp, nylon lock-on
Seatpost
TranzX JD-YSP18 dropper, internal routing, 31.6 mm. XXS/XS/S - 100 mm travel, 361 mm length. M - 130 mm travel, 425 mm length. ML/L/XL/XXL - 150 mm travel, 470 mm length.
Saddle
Bontrager Verse Short, stainless steel rails
Headset
Semi-integrated, 1-1/8"
Extras
Warranty
We are an authorised Trek dealer and supply this Trek Marlin 7 Keswick with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
XXS
4'5"-4'9"
1.35-1.45
XS
4'9"-5'1"
1.45-1.55
S
5'1"-5'5"
1.55-1.65
M
5'5"-5'9"
1.65-1.76
ML
5'8"-5'11"
1.73-1.80
L
5'10"-6'2"
1.77-1.88
XL
6'2"-6'5"
1.88-1.95
XXL
6'5"-6'8"
1.95-2.03
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
Geometry
