Description

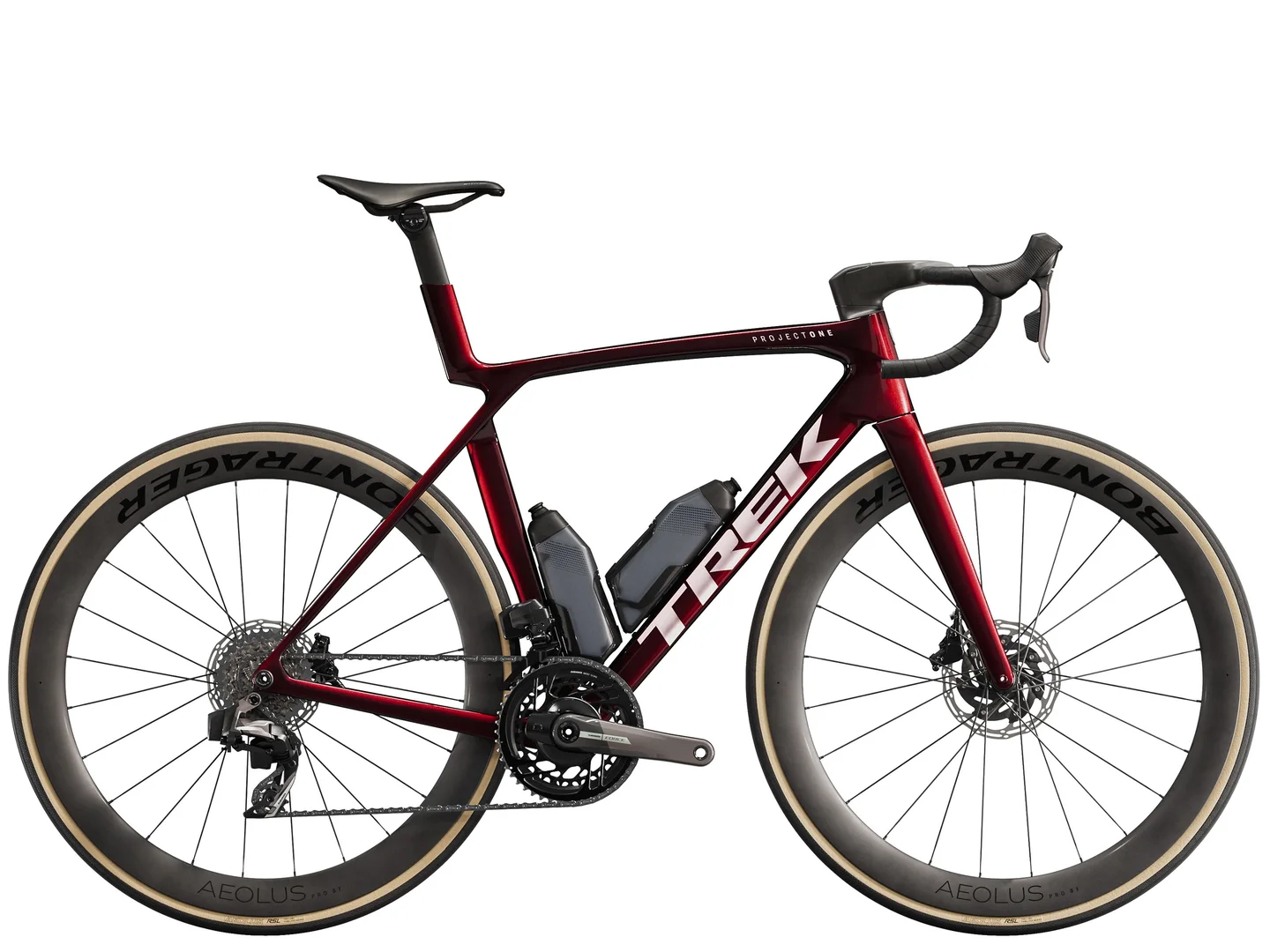

This Trek Madone SLR 7 AXS Red Smoke is available with our legendary Podium Point free accessory scheme.
The Madone SLR 7 AXS Gen 8 is an ultra-aero and featherlight road bike that's built to race. Its 900 Series OCLV Carbon frame is not only aerodynamic, but also ultra-light for flying up climbs. Lightweight IsoFlow frame technology means that the Madone doesn't sacrifice comfort for speed. To give you every aero advantage, the Madone SLR comes with RSL Aero Bottles and Cages that further reduce drag. This build comes ready to win with a SRAM Force AXS D2 drivetrain, carbon wheels and a Trek Aero RSL one-piece carbon bar/stem.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.
Specification
Year
Generation 8
Colour
Carbon Red Smoke
Frame
900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Rear Shock
Shifters
SRAM Force AXS D2 12 Speed
Rear Mech
SRAM Force AXS D2, braze-on
Front Mech
SRAM Force AXS D2, 36T max cog
Bottom Bracket
SRAM DUB, T47 threaded, internal bearing
Chainset
SRAM Force AXS D2, power meter, 48/35, DUB
Cassette
SRAM Force XG-1270, 10-33, 12 speed
Chain
SRAM Force, 12-speed
Brakes
SRAM Force Hydraulic 160mm rotor
Pedals
Not Supplied
Wheelset
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless-Ready
Tyres
Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm
Handlebar
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop. XS/S/M/ML/L/XL Control Width: 35/27/39/39/39/41cm, Drop Width:38/40/42/42/42/44cm, Stem length:80/90/90/100/100/110mm
Stem
Integrated
Grips
Seatpost
Madone aero carbon seat post, 0 mm offset, (short length XS,S,M. Long length ML,L,XL)
Saddle
Bontrager Aeolus P2 Pro, carbon rails
Headset
Extras
Warranty
We are an authorised Trek dealer and supply this Trek Madone SLR 7 AXS Red Smoke with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
XS
1.43-1.58
0.67-0.74
S
1.58-1.62
0.74-0.76
M
1.62-1.73
0.76-0.81
ML
1.73-1.79
0.81-0.84
L
1.79-1.88
0.84-0.88
XL
1.88-2.13
0.88-1.00
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
