Description
This Trek Fuel EXe 8 GX AXS T Red is available with our legendary Podium Point free accessory scheme.

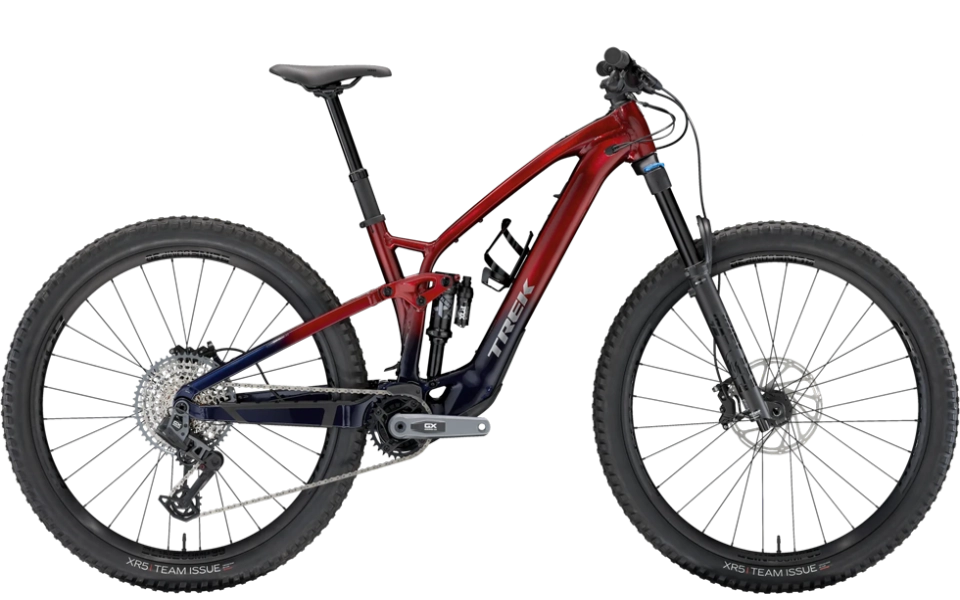

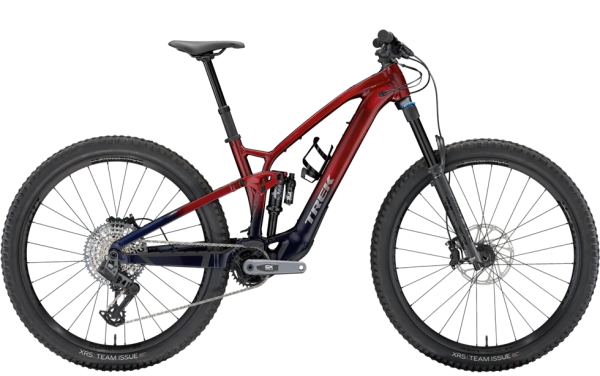

The Fuel EXe 8 is a trail-ready aluminium electric mountain bike that quietly assists you on the climbs so you've got all the power you need on descents. Like its carbon counterpart, it looks and handles like a traditional trail bike, but with the added support of a tiny-but-mighty harmonic pin ring drive system with sleek top-tube display unit and compact remote. It comes ready to rip with upgraded parts where they matter most, like a FOX suspension package, wide Bontrager Line Comp Tubeless Ready wheels and SRAM's 12-speed wireless GX AXS transmission.
The Fuel EXe 8 features a Alpha Platinum Aluminium frame with TQ's HPR50 harmonic pin ring drive system, a fully-encased 360 Wh removable battery and smart charging port. An integrated LED display and handlebar remote that are easy to use on the fly. 150 mm FOX Rhythm 36 front suspension with Float EVOL air spring and GRIP damper and 140 mm FOX Performance Float X rear suspension. Plus, wide, Tubeless Ready Bontrager Line Comp 30 wheels, SRAM's wireless 12-speed GX AXS transmission, hydraulic disc brakes and a dropper post.
Key Features:
- You get all the tech of Trek's top-end light e-MTB without a price tag that makes you say ouch
- Its upgraded FOX suspension package and SRAM wireless transmission gives you the performance gains you crave
- Its tiny-but-mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel
- The integrated display, charging port, and controls are simple to use, sleek and intuitive
- You can tweak your geometry with Mino Link
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).
IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
2024
Frame
Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
Rear Shock
Fox Performance Float X, 2-position damper, 205 mm x 60 mm
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Control System
Battery
TQ 360Wh
Display
TQ LED display with Bluetooth & ANT+ connectivity
Shifters
SRAM Eagle AXS POD
Rear Mech
SRAM GX Eagle AXS, T-Type
Front Mech
Bottom Bracket
Chainset
SRAM GX, 165 mm length
Cassette
SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Chain
SRAM GX Eagle, T-Type, 12-speed
Brakes
SRAM DB 8 4-piston hydraulic disc
Pedals
Not Supplied
Wheelset
Rim: Bontrager Line Comp 30, Tubeless-Ready, 28-hole, Presta valve, Hub F: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle, Hub R: Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
Tyres
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Stem
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Grips
Bontrager XR Trail Elite, nylon lock-on
Seatpost
Size: S: TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm, Size: M: TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm, Size: L, XL: TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Headset
Extras
TQ 4A charger, Tubeless setup
Warranty
We are an authorised Trek dealer and supply this Trek Fuel EXe 8 GX AXS T Red with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
S
5'0"-5'4"
1.53-1.62
M
5'3"-5'8"
1.61-1.72
ML
5'7"-5'10"
1.70-1.79
L
5'10"-6'2"
1.77-1.88
XL
6'1"-6'5"
1.86-1.96
XXL
6'5"-
1.95-1.03
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
