Description
This Trek Fuel EXe 5 Black is available with our legendary Podium Point free accessory scheme.

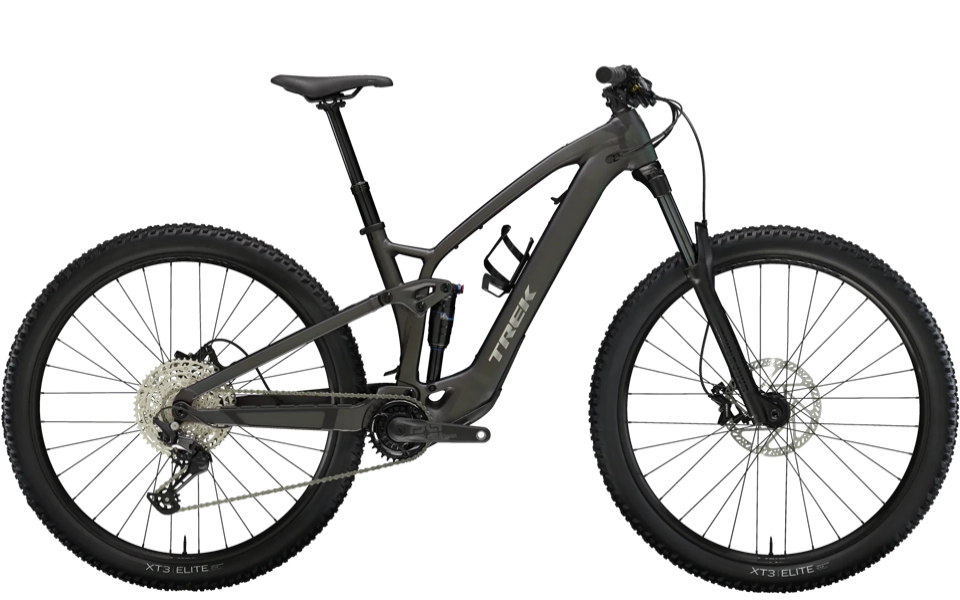

The Fuel EXe 5 is an aluminium electric mountain bike that brings all the tech of its carbon counterpart into a pocket-friendly package. It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.
The Fuel EXe 5 makes climbs a little sweeter without sacrificing the handling on descents!
The Fuel EXe 5 features an Alpha Platinum Aluminium frame with TQ's HPR50 harmonic pin ring drive system, a fully-encased 360 Wh removable battery and smart charging port. An integrated LED display and handlebar remote that are easy to use on the fly. 150 mm of air-sprung RockShox Recon Silver Solo front suspension with motion control damper and a lockout, and 140 mm X-Fusion Pro 2 rear suspension with 2-position damper. Plus, 12-speed Shimano Deore shifting, hydraulic disc brakes and a dropper post.
If you're ready to add power to your trail rides without breaking the bank, the Fuel EXe 5 is your answer.
Key features:
- You get all the fun of a trail bike, plus a little extra push to help you crush climbs and save some juice for the descent
- Its tiny-but-mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel
- The integrated display, charging port, and controls are simple to use, sleek and intuitive
- You can tweak your geometry with Mino Link, or add an adjustable angle headset to take even more control
- If you want to ride further you can easily add a range extender (available at extra cost) that fits neatly in your bottle cage
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).
IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
2025
Frame
Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork
RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel
Rear Shock
X-Fusion Pro 2, 2-position damper, 205 mm x60 mm
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Control System
Battery
TQ 360Wh
Display
TQ LED display with Bluetooth & ANT+ connectivity
Shifters
Shimano Deore M6100, 12-speed
Rear Mech
Shimano Deore M6100, long cage
Front Mech
Bottom Bracket
Chainset
E*thirteen E*spec Plus, 165 mm length
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Brakes
Tektro HD-M745 4-piston hydraulic disc
Pedals
Not Supplied
Wheelset
Rim: Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve, Hub F: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle, Hub R: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Tyres
Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40"
Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
Stem
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Grips
Bontrager XR Trail Comp, nylon lock-on
Seatpost
Size: S: TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length, Size: M: TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length, Size: L, XL: TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Saddle
Bontrager Arvada, steel rails, 138 mm width
Headset
Extras
TQ 4A charger, Tubeless setup
Warranty
We are an authorised Trek dealer and supply this Trek Fuel EXe 5 Black with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
S
5'0"-5'4"
1.53-1.62
M
5'3"-5'8"
1.61-1.72
ML
5'7"-5'10"
1.70-1.79
L
5'10"-6'2"
1.77-1.88
XL
6'1"-6'5"
1.86-1.96
XXL
6'5"-
1.95-1.03
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
