Description

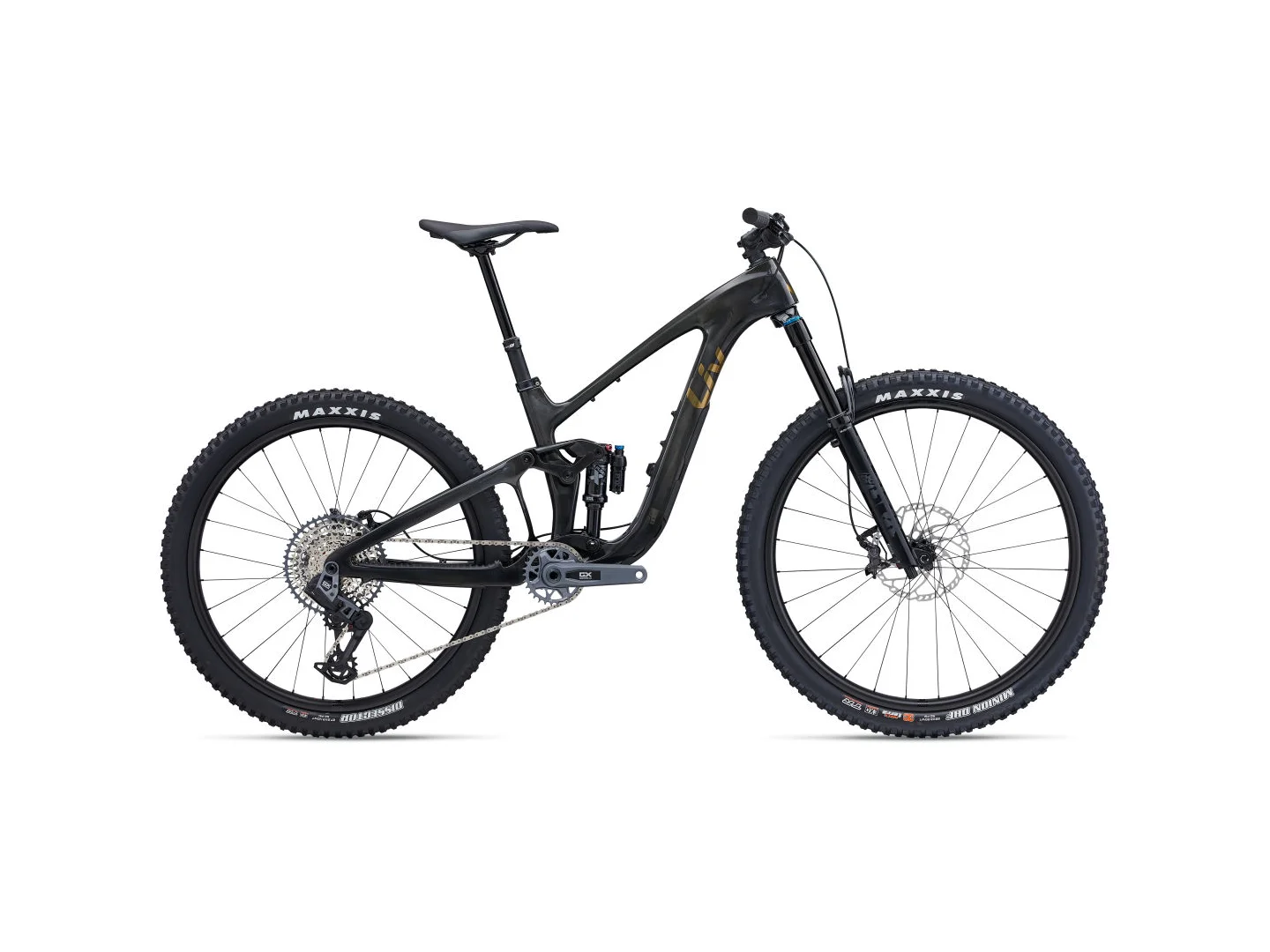

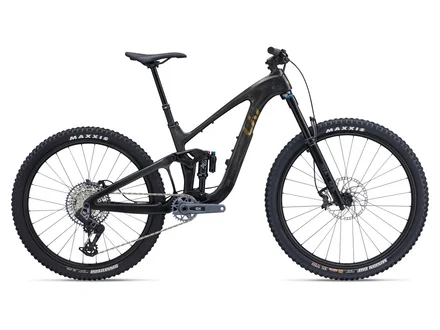

This Liv Intrigue X Advanced 29 1 2024 is available with our legendary Podium Point free accessory scheme.
The exceptionally versatile Intrigue X Advanced was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. extremely customisation with adjustable geometry, frame storage, and wheel options, the Intrigue X Advanced delivers extra performance and fun.
Performance Mid Travel Trail - Constructed with lightweight Advanced-grade composite for an agile, responsive ride, the frame also boasts integrated down tube storage - a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you've got the ultimate trail bike that's efficient on the ups and shreds on the downs.
Adjustable Frame Geometry - For ultimate adjustability, the Intrigue X Advanced features flip chip - Maestro 3 and the new flip chip - headset allowing you to customise the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height - you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimise your riding position for better handling and s
Best of Both Wheels - Frame sizes XS and S are solely designed for an MX configuration - 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics - fast and comfortable or quick and nimble - allowing you to customise your setup.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
2024
Colour
Gloss Raw Carbon/Chrome
Frame
Advanced-grade composite front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage
Fork
Fox 36 Performance Elite, 150mm, Grip 2 damper, Boost 15x110 Kabolt X, tapered, 44mm offset
Rear Shock
Fox Float X Performance Elite, 185x52.5, custom tuned for Liv
Shifters
SRAM AXS Pod, 1x12
Rear Mech
SRAM GX Eagle Transmission AXS
Front Mech
N/A
Bottom Bracket
SRAM DUB, press fit
Chainset
SRAM GX T-Type, 30t, 55mm chainline
Cassette
SRAM GX CS 1275 T-Type, 10x52
Chain
SRAM GX T-Type
Brakes
Shimano XT M8120, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm
Pedals
Not Supplied
Wheelset
Giant TRX 27.5"/29" hookless carbon wheelsystem 30mm rim inner width 40mm outer width 72t, POE, 28 SP spokes, DBL technology XD driver body 27.5"R/29"F for frame sizes XS/S 29"F&R for frame sizes for M/L
Tyres
Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Handlebar
Giant Contact SLR TR35, 20mm rise, composite
Stem
Giant Contact SL, 35mm
Grips
Liv Tactal Pro Single Lock-on
Seatpost
Giant Contact Switch, adjustable dropper, remote. XS&S: 140-170mm travel / 30.9 x 470mm, M&L: 170-200mm travel / 30.9 x 530mm
Saddle
Liv Sylvia
Headset
Extras
3M tailgate protector, factory tubeless set up, integrated down tube storage bag, max tire size 2.5", max chainring size 34t
Warranty
We are an authorised Liv dealer and supply this Liv Intrigue X Advanced 29 1 with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
XS
4'11"-5'4"
1.50-1.63
S
5'2"-5'7"
1.58-1.69
M
5'5"-5'9"
1.64-1.75
L
5'7"-5'11"
1.70-1.81
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
Geometry
