Description

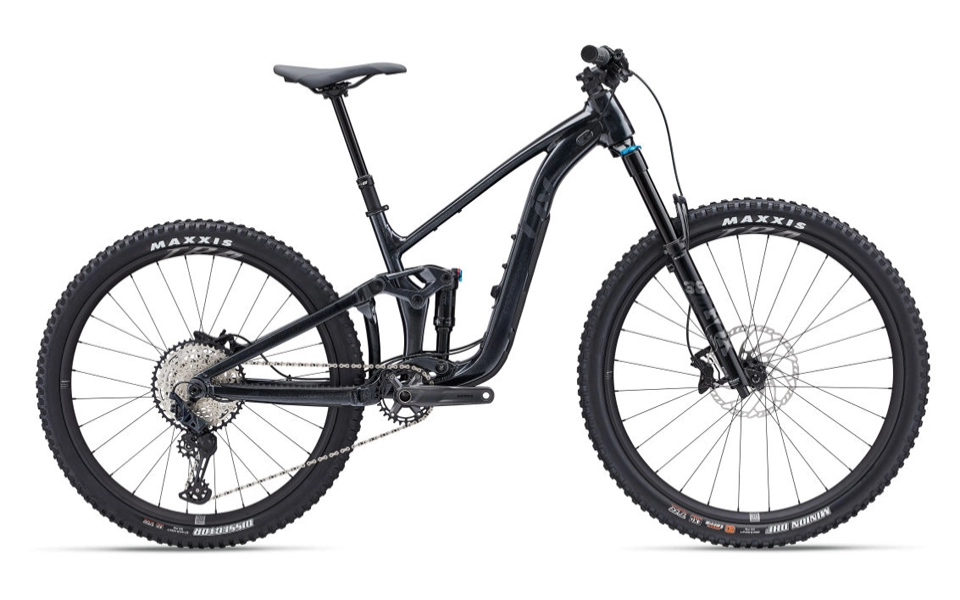

This Liv Intrigue X 1 2024 is available with our legendary Podium Point free accessory scheme.
The exceptionally versatile Intrigue X was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. extremely customisation with adjustable geometry, frame storage, and wheel options, the Intrigue X delivers extra performance and fun.
Performance Mid Travel Trail - Constructed with lightweight and durable ALUXX SL-grade aluminium, the frame boasts integrated down tube storage - a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you've got the ultimate trail bike that's efficient on the ups and shreds on the downs.
Adjustable Frame Geometry - For ultimate adjustability, the Intrigue X features flip chip - Maestro 3 and the new flip chip - headset allowing you to customise the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height - you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimise your riding position for better handling and stability,
Best of Both Wheels - Frame sizes XS and S are solely designed for a MX configuration - 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimises rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics - fast and comfortable or quick and nimble - allowing you to customise your setup.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
2024
Colour
Gloss Black Diamond/Matte Black
Frame
ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro Suspension, flip chip – Maestro 3, flip chip – headset, integrated down tube storage
Fork
Fox 36 Float Performance, 150mm, Grip damper, Boost 15x110 Kabolt X, tapered, 44mm offset
Rear Shock
Fox Float Performance, 185x52.5, custom tuned for Liv
Shifters
Shimano SLX M7100, 1x12
Rear Mech
Shimano SLX M7100, Shadow +
Front Mech
N/A
Bottom Bracket
Shimano, press fit
Chainset
Shimano MT512-1, 30t, 55mm chainline
Cassette
Shimano SLX M7100, 10x51
Chain
KMC X12
Brakes
Shimano BR-MT520, hydraulic, Shimano RT-66 [F] 203mm, [R] 180mm
Pedals
Not Supplied
Wheelset
Giant TRA, 29" hookless aluxx wheelsystem, 30mm inner width, 40mm outer width, 21mm H,72t POE, 28 SP spokes, DBL technology, MS driver body
Tyres
Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Handlebar
Giant Contact TR35, 20mm rise, alloy
Stem
Giant Contact SL, 35mm
Grips
Liv Tactal Pro Single Lock-on
Seatpost
Giant Contact Switch, adjustable dropper, remote. XS&S: 140-170mm travel / 30.9 x 470mm, M&L: 170-200mm travel / 30.9 x 530mm
Saddle
Liv Sylvia
Headset
Extras
3M tailgate protector, factory tubeless set up, integrated down tube storage bag, max tire size 2.5", max chainring size 34t
Warranty
We are an authorised Liv dealer and supply this Liv Intrigue X 1 with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
XS
4'11"-5'4"
1.50-1.63
S
5'2"-5'7"
1.58-1.69
M
5'5"-5'9"
1.64-1.75
L
5'7"-5'11"
1.70-1.81
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
