Description

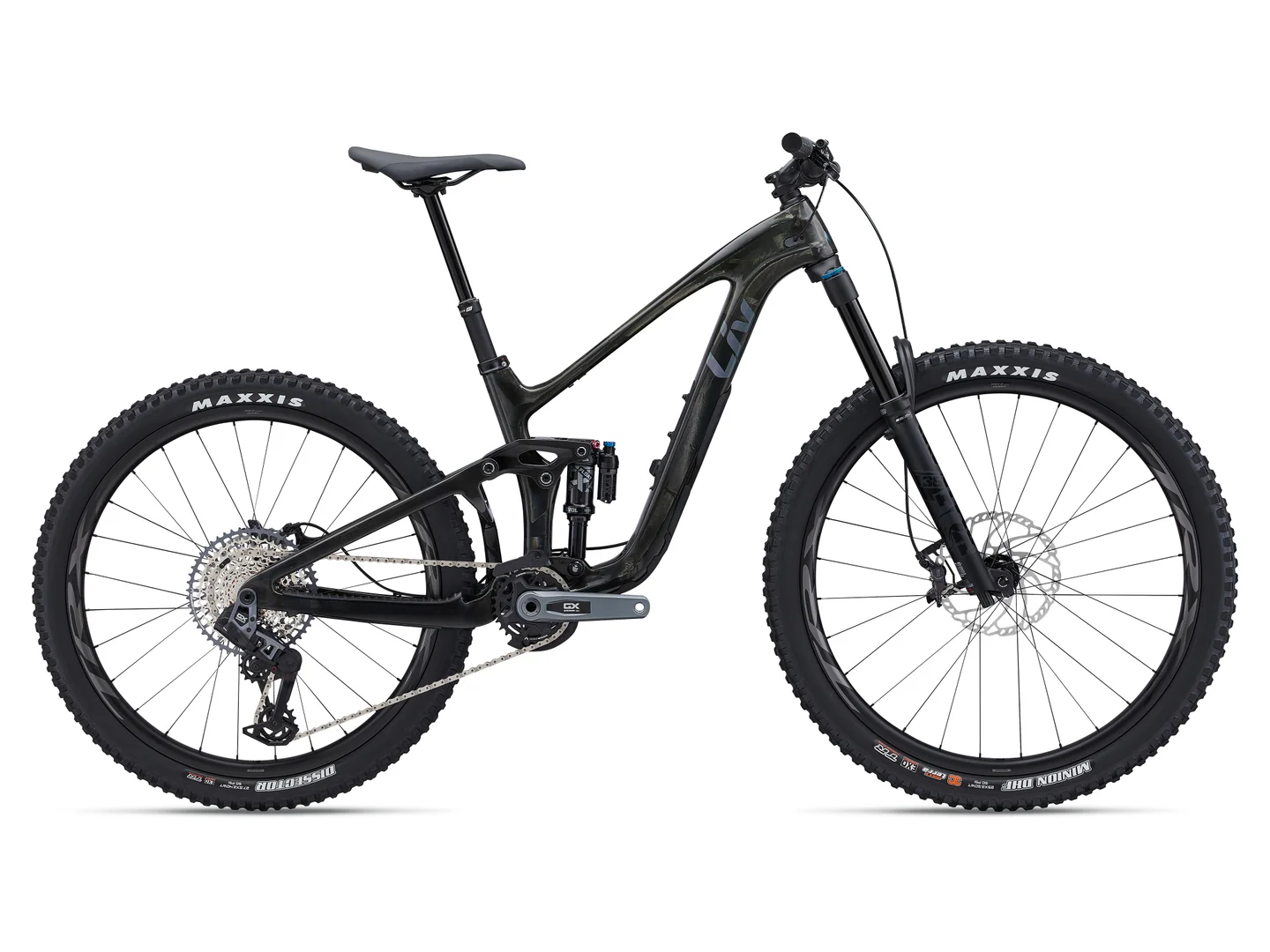

This Liv Intrigue LT Advanced 1 2024 is available with our legendary Podium Point free accessory scheme.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
2024
Colour
Raw Carbon
Frame
Advanced-grade composite front and rear triangles, 150mm Maestro Suspension, 3 position flip, integrated down tube storage
Fork
Fox 36 Performance Elite, 160mm, Grip 2 damper, Boost 15x110 Kabolt, tapered, 44mm offset
Rear Shock
Fox Float X Performance Elite 185x55, custom tuned for Liv
Shifters
SRAM AXS, 1x12
Rear Mech
SRAM GX Eagle Transmission AXS
Front Mech
N/A
Bottom Bracket
SRAM DUB, press fit
Chainset
SRAM GX T-Type, 30t, 55mm chainline
Cassette
SRAM GX T-Type, 10x52
Chain
SRAM GX T-Type
Brakes
Shimano XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Pedals
Not Supplied
Wheelset
Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
Tyres
[F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Handlebar
Giant Contact SLR TR35, composite, 20mm rise, 35mm
Stem
Giant Contact SL, 35mm
Grips
Liv Tactal Pro Single Lock-On
Seatpost
TranzX travel-adjustable dropper, remote. XS&S: 120-150mm travel/ 30.9 x 459mm, M&L: 140-170mm travel / 30.9 x 499mm
Saddle
Liv Sylvia
Headset
Extras
MRP chain guide, 3M tailgate protector, factory tubeless set up, integrated down tube storage bag, max tire size 2.5", max chainring size 32t
Warranty
We are an authorised Liv dealer and supply this Liv Intrigue LT Advanced 1 with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
XS
5'0"-5'4"
1.52-1.63
S
5'2"-5'7"
1.58-1.69
M
5'5"-5'9"
1.64-1.75
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
