Description

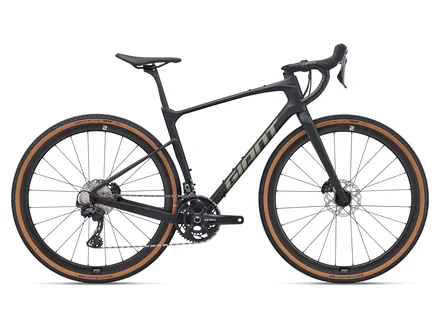

The Giant Revolt Advanced 0 is a brilliant performance gravel bike which features an awesome Advanced composite frame, Shimano's new GRX820 2x12 drivetrain components and lightweight Giant CXR2 composite wheels.
The Revolt Advanced composite frame and fork is 160 grams lighter than the previous generation of Revolt and offers a fantastic balance of performance to price. Up-to-date geometry includes a lower bottom bracket, longer reach and steeper headtube angle for improved acceleration and climbing. The Revolt Advanced's frame features thin, dropped seatstays to absorb road shocks and vibrations. Giant's D-Fuse handlebar and seatpost also work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
The Revolt Advanced 0 includes a Giant CXR2 composite wheelsystem. The composite rim is super light to aid acceleration but laterally stiff for maximum control. It also features a 25mm inner rim width for better tyre support and a larger air volume. The wheelsystem and tyre combination come setup tubeless from the factory to optimise rolling resistance and help reduce punctures.
The Revolt Advanced is the perfect partner for all types of rides from gravel through to dirt and tarmac. Chose Revolt for any adventure.
Important document: Please read before adjusting chip position Flip Chip assembly instructions.
Important document: Please read before setting saddle height Seat Post Clamp assembly instructions.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
IMPORTANT: This bicycle is supplied without pedals.
Specification
Year
Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Rear Shock
N/A
Shifters
Shimano GRX RX-820, 2x12
Rear Mech
Shimano GRX RX-820
Front Mech
Shimano GRX RX-820
Bottom Bracket
Shimano, press fit
Chainset
Shimano GRX RX-820, 31/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Cassette
Shimano CS-HG710, 12-speed, 11x36
Chain
KMC X12L-1
Brakes
Shimano GRX RX-820 hydraulic, Shimano SM-RT70 rotors [F]160mm, [R]160mm
Pedals
Not Supplied
Wheelset
Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
Tyres
CADEX AR, 700x40c, tubeless
Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Grips
Stratus Lite 3.0
Seatpost
Giant D-Fuse SL, composite, 14mm offset
Saddle
Giant Approach
Headset
Extras
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
Warranty
We are an authorised Giant dealer and supply this Giant Revolt Advanced 0 with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
S
5'3"-5'7"
1.59-1.71
M
5'7"-5'11"
1.69-1.81
ML
5'9"-6'1"
1.74-1.86
L
5'11"-6'3"
1.79-1.91
XL
6'3"-Above
1.89-Above
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
Geometry
Geometry - Short Chip Position
