Description

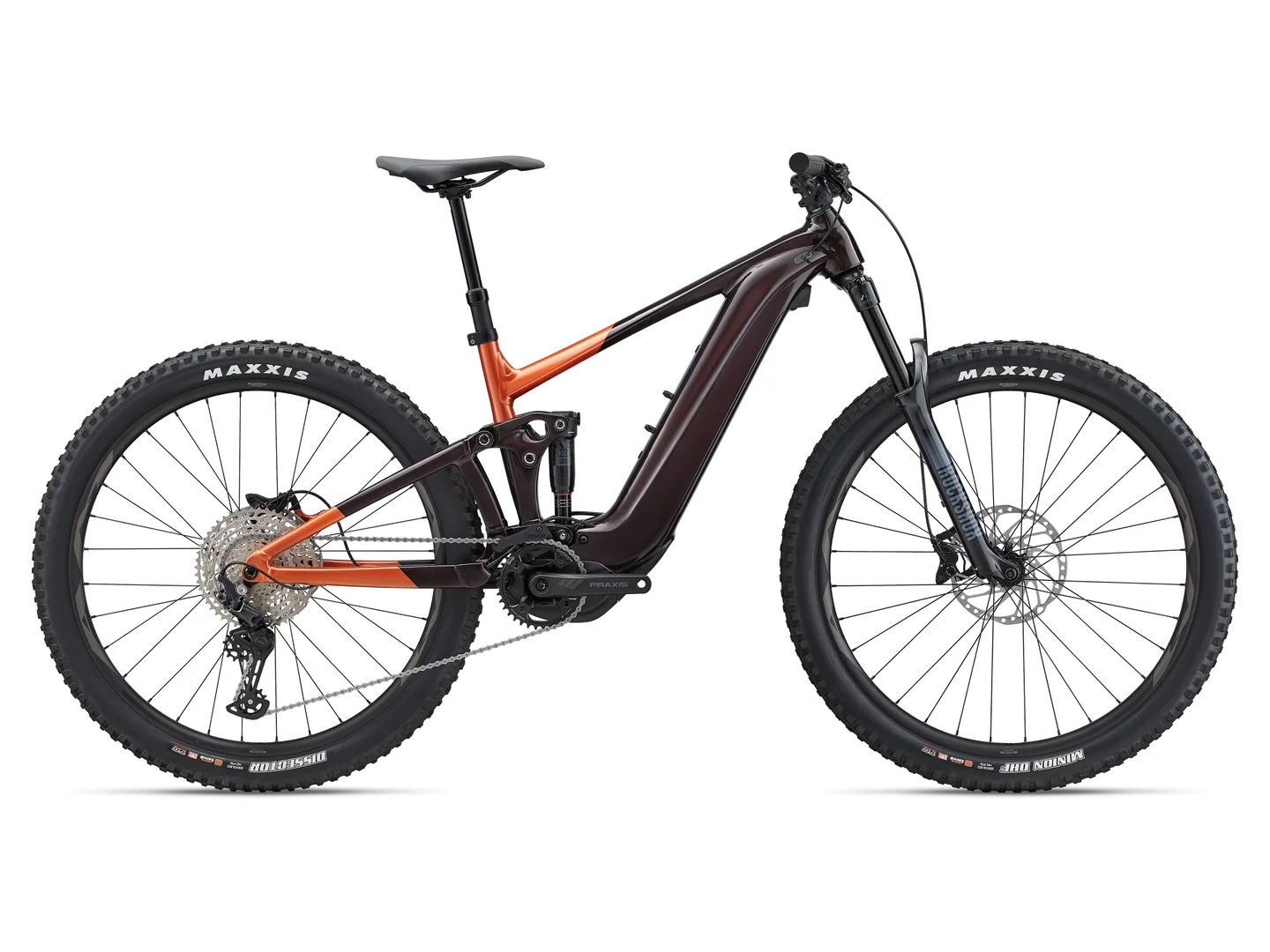

This Giant Trance X E+ 3 2024 is available with our legendary Podium Point free accessory scheme.
Faster up the climbs, longer loops, more singletrack fun on any given day. free yourself to push your trail riding to the next level with this powerful, fun and smooth-riding e-bike.
Smooth, powerful support - SyncDrive Pro motor delivers 85Nm of torque and tuneable support ratios up to 400 percent. Smart Assist technology creates smooth pedal assistance that engages instantly when human power is applied, giving you reliable performance on steep climbs and at low speeds.
Trail-riding control - Optimised Maestro suspension for 29-inch wheels with 140mm rear/ 150mm front travel to roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents.
Adaptable to the terrain - Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).
IMPORTANT: This bicycle is supplied without pedals. Pedals for this bicycle can be selected for no cost using Podium Points™.
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard. A suspension pump can be selected for no cost using Podium Points™.
Specification
Year
2024
Frame
ALUXX SL-grade Aluminium, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
Fork
RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimised
Rear Shock
Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
Motor
Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
Control System
Giant RideControl Ergo3, grip integrated remote. Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Battery
Giant EnergyPak 750Wh, Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
Display
Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
Shifters
Shimano Deore 1x12
Rear Mech
Shimano Deore, 12-speed
Front Mech
MRP HD2 co-moulded chain guide
Bottom Bracket
n/a
Chainset
Praxis Wave tm 36T Cold Forged 4130 premium steel chain ring 104BCD Praxis e-crank arm set (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T
Cassette
Shimano CS-M6100-12, 10-51T, 12-speed
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimised
Brakes
Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Pedals
Flatpedal
Wheelset
Rims: Giant AM 29", Tubeless ready, 30mm inner width. Hubs: Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Tyres
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
Handlebar
Giant Contact 35 Trail, 35x780mm
Stem
Giant Contact SL 35
Grips
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:125mm, M:150mm, L/XL:170mm)
Saddle
Giant Romero
Headset
Extras
Giant EnergyPak 6A smart charger, 60% in 3:00h. Tubeless kit (liquid, valves, levers, manual, tool)
Warranty
We are an authorised Giant dealer and supply this Giant Trance X E+ 3 with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
S
5'4"-5'8"
1.63-1.72
M
5'7"-5'11"
1.71-1.80
L
5'10"-6'2"
1.79-1.88
XL
6'2"-Above
1.87-Above
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
Geometry
Geometry - Low BB Position
