*In Stock - Not all In Stock bikes are on display. If you would like to collect or view a bike in store, please use our Click & Collect payment method or call 0118 9821021 to reserve and ensure your bike is ready for your visit.
ETAs are based on manufacturer's latest data.
Please note that we are unable to ship this Giant Trance X E+ 2 SAD outside of the UK.
Important lead time information
Where delivery times are stated as an ETA month this is based on the latest information from the manufacturer. These dates should be treated as a guide and may be subject to change. Due to an increased strain in global supply chains, factory and shipping schedules can be easily disrupted.
Should you place a future order with us we will monitor the bike’s ETA and keep you informed of any changes.
For more detailed information please read here.
Description
Scratch & Dent bikes (SAD) are new bicycles with minor defects.

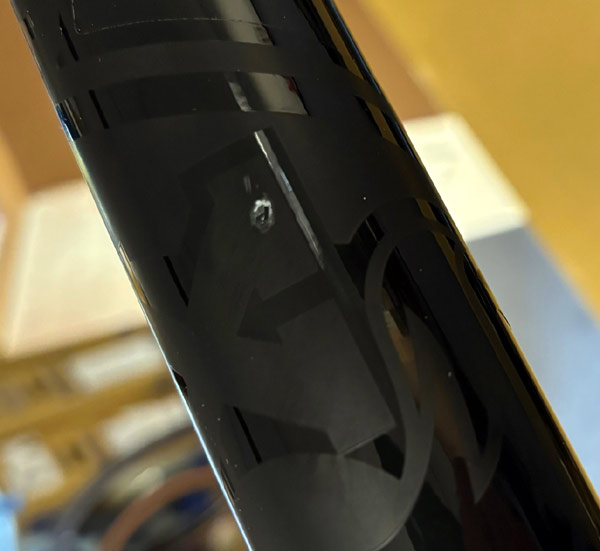

This bicycle has a ncosmetic defect on the fork leg.
This bike comes complete with a full manufacturer's warranty except for any faults related to the advertised defect.
Please note: This model features tubeless ready wheels and tyres which offer a superior ride and less rolling resistance than traditional innertubes. This system requires tyre sealant to function correctly and this will be fitted in our workshop prior to despatch. The nature of this sealant means that the tyre may not be fully sealed until it has been ridden a short distance and therefore the bicycle may arrive with reduced pressure in the tyres. Please check the bicycle's tyres are inflated to the recommended pressure before cycling.
Please note: This model offers electric assistance up to speeds of 25kph (15.6mph).
View all Scratch & Dent bikes here
IMPORTANT: This bicycle is supplied without pedals.
IMPORTANT: This bicycle requires a suspension pump to set and tune its suspension correctly. This is not included as standard.
Specification
Year
2024
Frame
ALUXX SL-grade Aluminium, Advanced Forged Composite linkage, 140mm Maestro Suspension System, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible
Fork
Fox 36 Float Rhythm E-Tuned, 29er, 150mm travel, 44mm offset, Grip Damper, Sweep adjust, Boost 110x15QR
Rear Shock
Fox Float Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
Motor
Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology
Control System
Giant RideControl Ergo3, grip integrated remote. Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Battery
Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
Display
Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
Shifters
Shimano SLX 1x12
Rear Mech
Shimano SLX, 12-speed, Shadow+
Front Mech
MRP HD2 co-moulded chain guide
Bottom Bracket
n/a
Chainset
Praxis Wave tm 36T Cold Forged 4130 premium steel chain ring 104BCD Praxis e-crank arm set (S:160, M/L:165, XL:170) Q-factor=168mm, Chainline: 55mm, Max Chainring: 38T
Cassette
Shimano CS-M6100-12, 10-51T, 12-speed
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimised
Brakes
Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm
Pedals
Flatpedal
Wheelset
Rims: Giant AM 29", Tubeless ready, 30mm inner width. Hubs: Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Tyres
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R]
Handlebar
Giant Contact 35 Trail, 35x780mm
Stem
Giant Contact SL 35
Grips
Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:125mm, M:150mm, L/XL:170mm)
Saddle
Giant Romero
Headset
Extras
Giant EnergyPak 6A smart charger, 60% in 3:00h. Tubeless kit (liquid, valves, levers, manual, tool)
Warranty
We are an authorised Giant dealer and supply this Giant Trance X E+ 2 SAD with a LIFETIME manufacturer's warranty. Read Warranty Terms
Sizing
Size
S
5'4"-5'8"
1.63-1.72
M
5'7"-5'11"
1.71-1.80
L
5'10"-6'2"
1.79-1.88
XL
6'2"-Above
1.87-Above
Sizing information is provided as a general guide only. This is based on the average rider riding the bicycle in the style for which it is intended. This takes no account of a rider's personal proportions, physique, flexibility and biomechanics. If your height places you on, or near, a bicycle size step then we recommend you consider both sizes. All bicycles offer a range of handlebar and saddle adjustment which will enable you to fine tune your riding position once the correct size has been established. If you are unsure on sizing, we strongly recommend you visit our store so we can assist you. Pedal On offers advice and information on sizing in good faith, the final decision and responsibility on which size to purchase is yours.
Geometry
Geometry - Low BB Position
