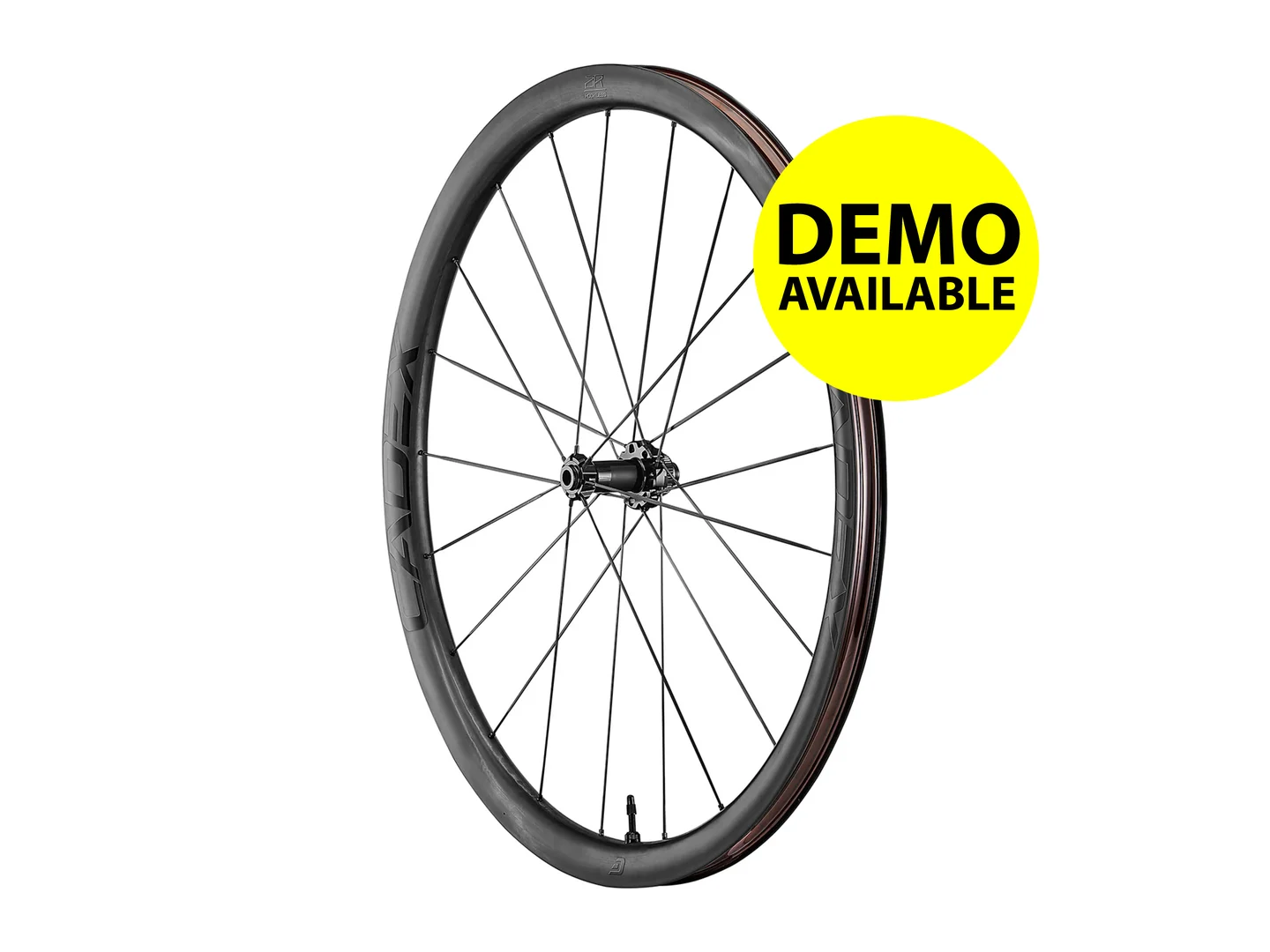

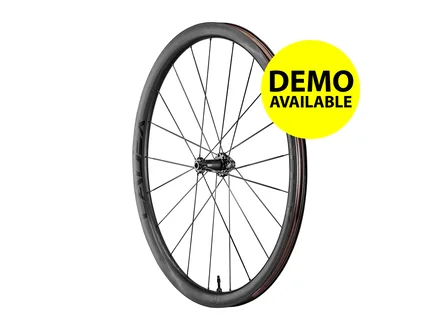

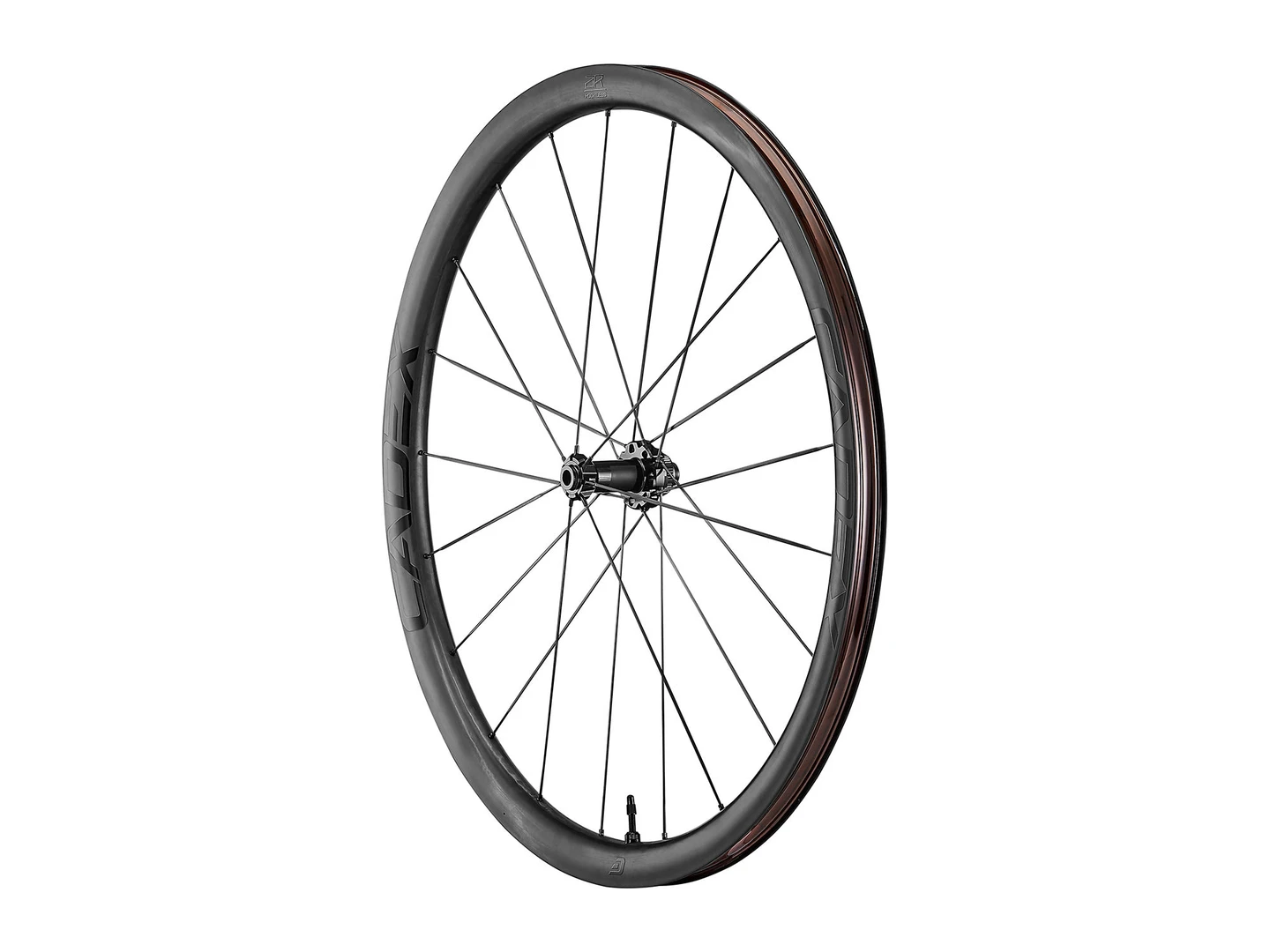

Cadex AR 35 Wheel Front

Details

**This model is available to demo - please contact the store for details**

Engineered for rough roads, gravel and dirt, and built ultralight for unmatched climbing speed and acceleration, the custom-tuned CADEX AR 35 Disc WheelSystem delivers a competitive edge for your all-road ambitions. The rims feature a wide inner width and hookless bead for maximum strength and smooth handling. The innovative 60-tooth ratchet freehub delivers instant reactivity. And ultrasmooth CADEX ceramic bearings keep you rolling with speed, making the most of your energy output start to finish.

A hookless bead and precision reinforced carbon layup create an exceptionally strong structure with best-in-class weight. A 25mm inner rim width produces a more uniform tire shape and better handling. The innovative 60-tooth ratchet freehub and ultrasmooth ceramic bearings deliver a responsive feel, while high-tensile-strength carbon spokes and Dynamic Balanced Lacing boost lateral stiffness. It all adds up to class-leading speed, efficiency and durability for superior all-road performance.

- Hookless rim technology offers XC-level impact resistance by providing a more consistent carbon fiber structure at the rim wall. It also creates a
rounder tyre shape for better grip and sidewall support when cornering.
- Precision reinforced carbon lay-up places carbon fiber only where needed, creating a super strong and lightweight rim.
25mm inner width and hookless rim construction offer a shorter, wider tyre contact patch for reduced power loss and increased impact absorption.
- A wide inner width supports higher volume 28–45mm road and gravel tyres, allowing lower tire pressures and more confident handling.
- High-tensile-strength, ultralight CADEX carbon spokes and precision reinforced carbon lay-up combine for class-leading stiffness-to-weight.
- Custom tuned Dynamic Balanced Lacing (DBL) technology sets spokes at a wider bracing angle and evens out tension under pedaling force, producing
a stiffer, more efficient wheel with outstanding power transfer.
- CADEX ceramic bearings offer 1.5x smoother action than steel.
- Lightweight CADEX R2-C60 hub with R-Drive features a DLC 60-tooth ratchet driver, durable flat spring and redesigned dust cover for instant engagement and long-lasting efficiency.
- Integrated front hub design reinforces axle support and eliminates play by replacing end cap, bearing and bushing interface with an integrated
axle running the length of the hub.

Rim Material Carbon
Rim Type Hookless Clincher
Tubeless CADEX Tubeless System (rim tape and valve included)
Suggested Tire Size 700 x 28C - 700 x 45C
Rim Height 35mm
Rim Outer Width 31mm
Rim Inner Width 25mm
ETRTO 622-25
Front Hub CADEX R2-C60 Hub, Centerlock
Bearing CADEX Ceramic Bearings
Front Axle 100x12 Thru Axle
Spokes (Front) Aero Carbon Spoke
Lacing (Front) 21H
Nipple Type Alloy
Weight (Pair) 1270g
