Details

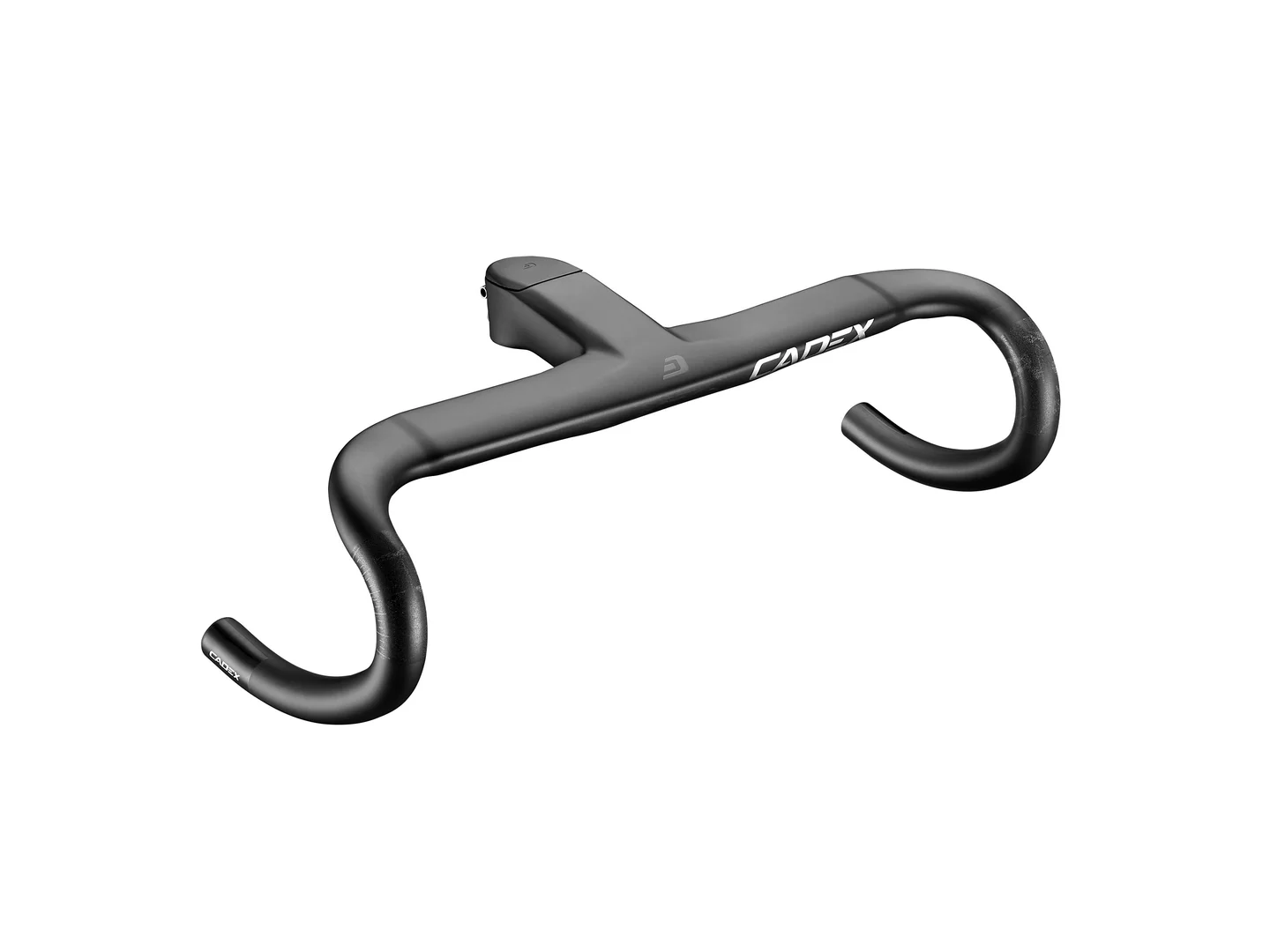

When every watt matters, the lightweight CADEX Aero Integrated handlebar leads from the front. With its innovative bar-and-stem construction, flattened tops, gently flared drops, and sleek internal cable routing, it delivers an aero advantage to help you slice through the wind.
Integrated bar-and-stem construction and sleek internal cable routing combine for exceptional aerodynamic performance. A narrow width at the hoods combined with a long 80mm reach naturally put the rider in an aero position, and a flattened top section reduces frontal area for wind-slicing efficiency.
A shallow 125mm drop makes changes in hand position smooth and seamless. A two-piece bar and stem layup featuring CADEX one-piece, no-bond manufacturing on the drops, hoods and tops uses T800 and T1100 carbon fiber to keep weight low and stiffness high for increased precision when cornering, descending, and sprinting.
A 3-degree flare adds stability and control while maintaining maximum aerodynamic efficiency. A subtle 2-degree backsweep and gently curving ramps enable a relaxed arm position and better grip for long days in the saddle.
Features:
Integrated bar-and-stem construction and internal cable routing for improved aerodynamic performance.
One-piece, no-bond manufacturing on the drops, hoods and tops utilizes high- grade carbon fiber and CADEX precision layup technique to eliminate the added weight and flex found in traditionally bonded bars.
Flattened tops improve aerodynamic efficiency.
80mm reach and narrow width at the hoods for natural aero positioning.
T800 and T1100 carbon fiber keeps weight low without compromising strength or stiffness.
Shallow drop makes transitions between hoods and drops fast and easy.
3-degree flare delivers enhanced control when descending, cornering and sprinting.
2-degree backsweep and gently curved ramps provide better grip and support during long rides.
Shimano Di2 satellite shifter compatible.
Out-front computer mount.
Compatible with 3 standards: Giant/Liv OverDrive Aero, OverDrive1 (1'1/8) & OverDrive 2 (1'1/4) see included spacers and shims provided
Specifications:
Material: Carbon
Stem Angle: -10 degrees
Stem Clamp: 1 '1/4", 1'1/8",OverDrive Aero (with carbon shim)
Stem Length: 80 / 90 / 100 / 110 / 120 / 130mm
Width: (Drop to Drop): 380 / 400 / 420mm
Width (Hood to Hood): 360 / 380 / 400mm
Drop: 125mm
Reach: 80mm (72mm for 360mm bar)
Flare: 3 degrees
Backsweep: 2 degrees
Weight: 325g (420mm x 100mm bar)
Included Accessories: 1'1/8" spacer, OverDrive Aero spacer, 2021-2023 TCR spacer, OverDrive Aero shim 1' 1/4" to 1'1/8" shim, CADEX out-front computer mount
